Electric Furnace Charging

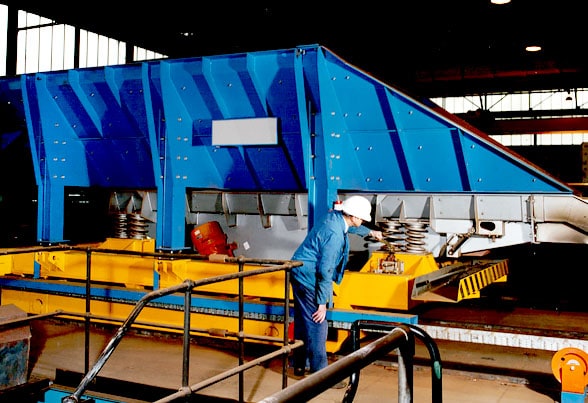

14t capacity dedicated chargerShow Full Screen
Static batch weigher charger with slewing transfer systemShow Full Screen
“x” / “y” axis travelling charger with bucket loading systemShow Full Screen
3t capacity dedicated chargerShow Full Screen
Pair of 5t capacity chargersShow Full Screen
25t capacity scissor lift to raise / lower a travelling chargerShow Full Screen
1t capacity dedicated furnace charger with integrated drum tipping stationShow Full Screen
Static 8t capacity batch weighing / feeding systemShow Full Screen
Typical 3d cad modelShow Full Screen

Foundry Projects Ltd manufacture Electric Furnace Chargers which typically range between 1T and 20T batch capacity.

One of our chargers can be dedicated to feed one furnace or alternatively to feed multiple furnaces by travelling in various directions.

Our electric furnace charging systems convey scrap/charge materials through vibration by using a pair of out of balance motors controlled via a variable control system to provide a rapid or trickle feed into the furnace to minimise damage and wear to the furnace lining.

Our chargers are offered with rubber/steel sandwich wear plates to reduce both the shock impact loads and the resulting noise from this filling process.
